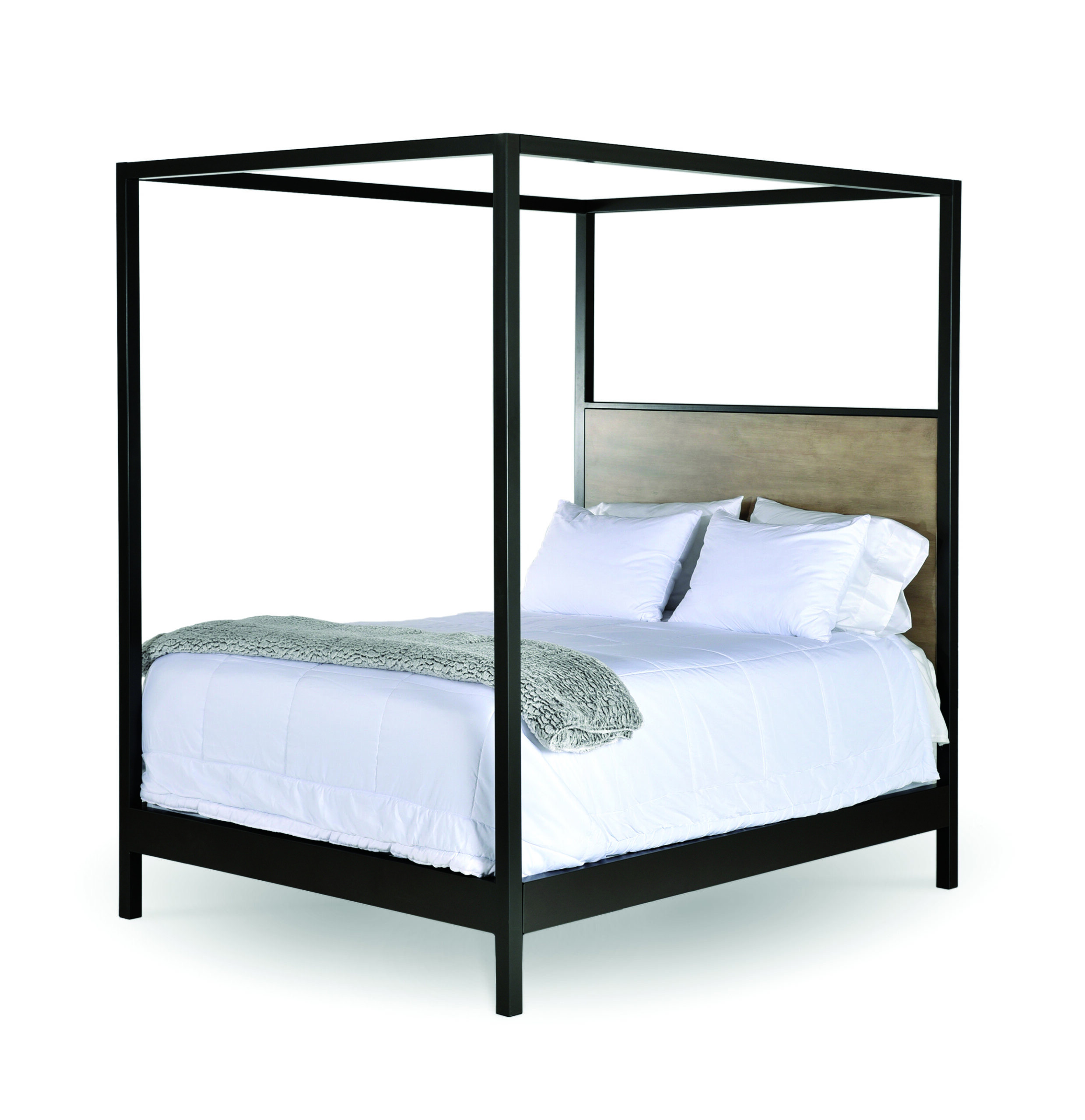

Sloan Canopy Bed Assembly Instructions
ATTENTION: A wall anchor kit has been included with your custom furniture item. We recommend using this device to prevent inadvertent tipping. Detailed instructions for installation of the wall anchors are included in the attached package (supplied by the manufacturer). For your convenience we have also included bolts that you may use to bolt the metal bracket to your wooden shelf, should you choose. Use and installation of this device is at your own risk. Charleston Forge makes no guarantee and shall not be liable for use or misuse of this wall anchor kit. All installations will vary; consult a general contractor or the manufacturer of the anchor kit if you are uncertain this is the right solution for you.
NOTE: You will need the following tools available to assemble your bed.
i. 9/16” wrench
ii. Large Flat Head Screwdriver
iii. Two ladders or step-stools (to attach canopy rails)
You will need at least two helpers to assemble this bed safely.
![Sloan Canopy Bed-15 Sloan Canopy Bed-15](https://www.charlestonforge.com/wp-content/uploads/2023/12/Sloan-Canopy-Bed-15-scaled.jpg)
![SLOAN CANOPY ISO PIC SLOAN CANOPY ISO PIC](https://www.charlestonforge.com/wp-content/uploads/2023/12/SLOAN-CANOPY-ISO-PIC.png)
STEP ONE
Use one helper to steady the headboard. Use your second helper to elevate and support the side rail so you can attach it to the headboard with the 5/16” flat head bolts.
STEP TWO
Once the rail is attached, have your helper continue to support he headboard with the one side rail attached. Bring the footboard to the attached side rail with a helper. Attach the footboard to the side rail with the 5/16” flat head bolts.
STEP THREE
Have a helper remain at the headboard to steady it. Attach the second side rail to the headboard and footboard using the remaining 5/16” flat head bolts.
![assembly-1 assembly-1](https://www.charlestonforge.com/wp-content/uploads/2023/12/assembly-1.jpg)
STEP FOUR
Reposition the bed as needed to get it in its final location and to be sure the headboard and footboard are aligned.
STEP FIVE
Select one of the canopy rails (they work on either side). Loosen the end-bolts but do not remove them. With a helper use the two ladders or step stools to lift one of the canopy rails into position. Slide the threaded rods at the end of the canopy rail into the slots at the top of the bed legs. The nut should all be inside the square leg tubing. Turn the nut by hand to snug it, complete tightening with the 9/16” wrench.
![assembly-2 assembly-2](https://www.charlestonforge.com/wp-content/uploads/2023/12/assembly-2.jpg)
![assembly-3 assembly-3](https://www.charlestonforge.com/wp-content/uploads/2023/12/assembly-3.jpg)
STEP SIX
Repeat step 5 for the remaining canopy rail.
STEP SEVEN
Attach the three mattress support rails to the bed side rails using the included #10 x ½” Philips head screws and supplied nuts.
![assembly-4 assembly-4](https://www.charlestonforge.com/wp-content/uploads/2023/12/assembly-4.jpg)
![assembly-5 assembly-5](https://www.charlestonforge.com/wp-content/uploads/2023/12/assembly-5.jpg)
STEP EIGHT
Make any final adjustments to the bed position and double check all bolts for tightness.
STEP NINE
Install your mattress box spring.
